Standard Primary Polyurethane Belt Cleaner
--Reliable removal of carryback at the head pulley of conveyor systems.
Standard primary polyurethane belt cleaner designed for most belt conveyor systems, offering reliable cleaning with a simple and stable structure.
- Reinforced One-Piece Crossbeam for Stable Installation
- Dual Spring Tension Maintaining Constant Blade Pressure
- Abrasion-Resistant Polyurethane Blade Protecting the Belt Surface
- Segmented Blade Design for Faster Maintenance Replacement

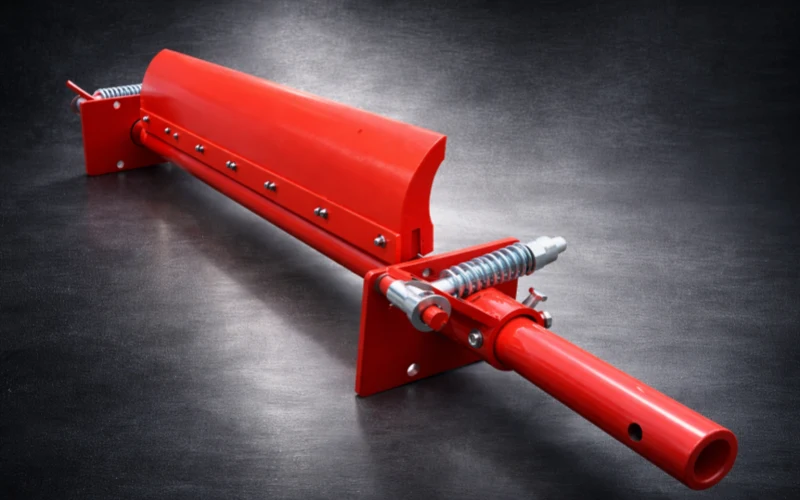

Standard Primary Polyurethane Belt Cleaner Overview
The standard primary polyurethane belt cleaner is designed as a general-purpose cleaning solution for belt conveyor systems. Its balanced structure and polyurethane blade design allow the cleaner to operate reliably across different conveyor capacities, from lighter conveying lines to medium and selected heavy-duty bulk material handling systems.
- Suitable for a wide range of conveyor capacities and operating environments
- Polyurethane blade adapts to different bulk material characteristics
- Optional segmented blade sections fastened with bolts for easier maintenance
- Compatible with multiple conveyor belt widths and system layouts
- Continuous bulk material conveying lines
- Medium-capacity material transfer conveyors
- General industrial conveying systems
- Standard bulk handling installations
Standard Primary Polyurethane Belt Cleaner Features
The standard primary polyurethane belt cleaner is designed as a general-purpose solution for conveyor belt cleaning. Its structure focuses on stable operation, simplified maintenance, and adaptability to different conveyor conditions.

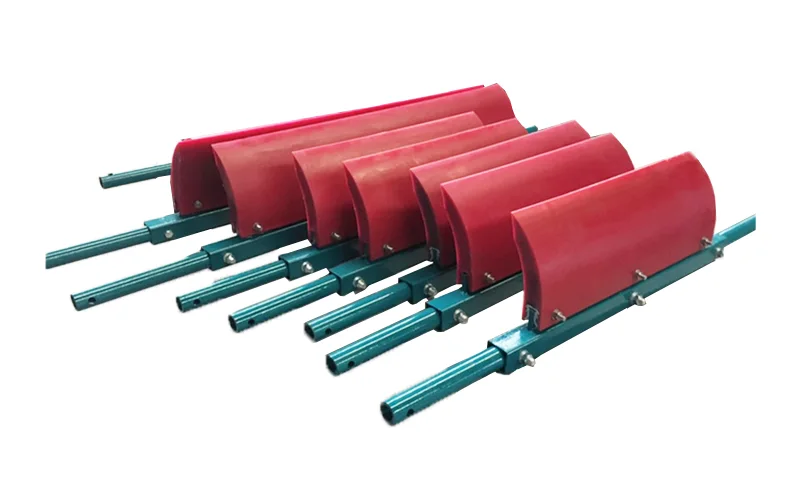

Balanced Design for General Conveyor Use
The cleaner structure is designed to operate reliably on a wide range of conveyor systems, from light-duty conveying lines to medium-capacity bulk material transport systems.
Flexible Polyurethane Blade Contact
The polyurethane blade maintains stable contact with the belt surface while adapting to belt vibration and minor surface irregularities during operation.

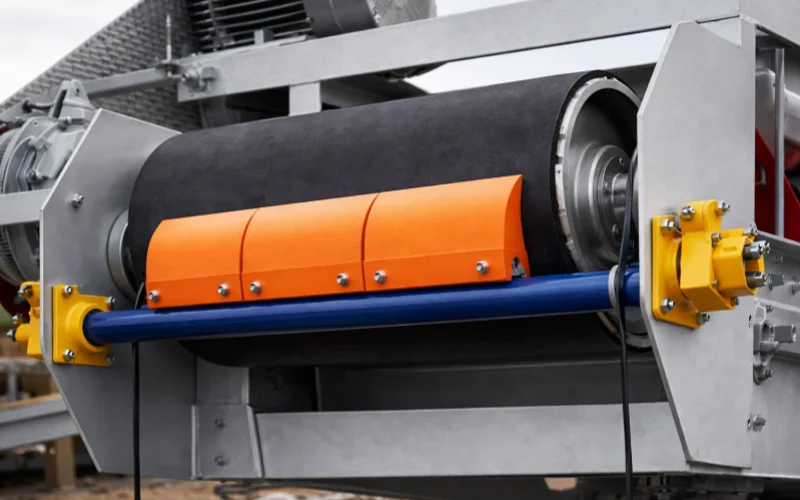

Stable Cleaning Pressure Control
Spring tension mechanisms maintain consistent blade pressure against the belt surface, helping the cleaner maintain stable performance as the blade gradually wears.
Maintenance-Friendly Blade Replacement
Blade sections can be replaced individually when required. Segmented blades are secured with bolts, allowing maintenance without removing the entire cleaner assembly.

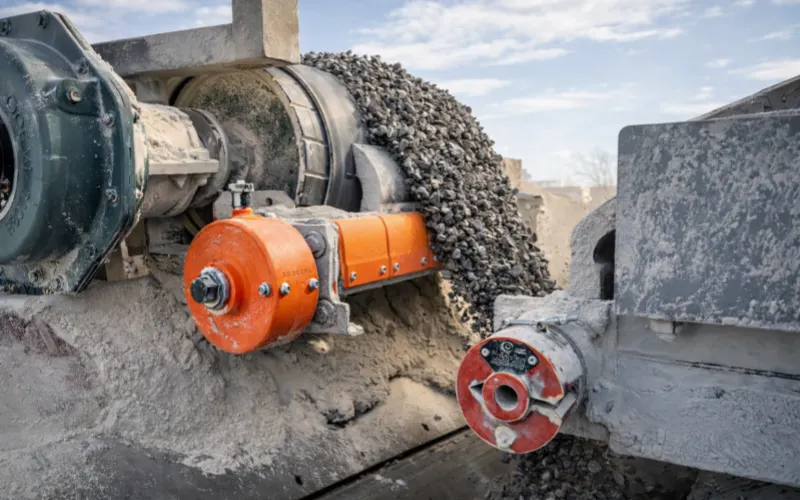

Compatible with Multiple Conveyor Layouts
The cleaner can be installed on various conveyor structures and belt widths, making it suitable for standard industrial conveying systems.
Standard Primary Belt Cleaner Specifications
The standard primary polyurethane belt cleaner is available in multiple sizes to match different conveyor belt widths. Dimensions are designed to ensure stable installation and proper blade contact across the belt surface.
Dimensional Specifications
| Belt Width (B) | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
|---|---|---|---|---|---|---|---|---|---|---|
| Cleaner Length (A) | 1500 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | 3200 |
| Applicable Belt Width | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |

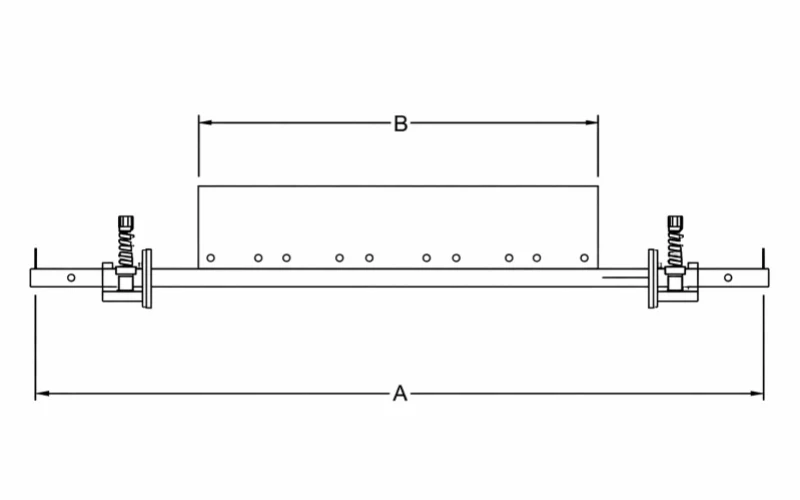

Product Structure Diagram

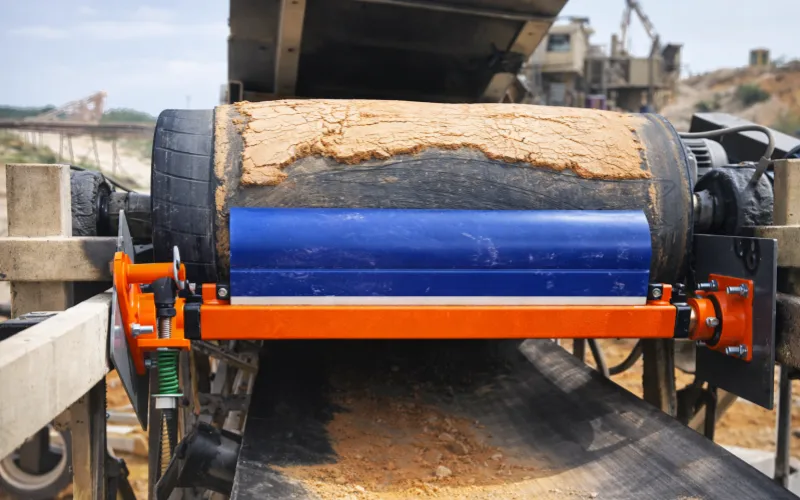

Standard Primary Belt Cleaner Working Principle
- Continuous blade contact separates residual material from the conveyor belt surface
- Scraping action reduces adhesion between sticky bulk material and the belt
- Carryback material is removed before it reaches the return side of the conveyor
- Residual material is directed back into the material flow instead of accumulating
- Reduced carryback helps keep rollers and conveyor structures cleaner
- Stable cleaning action supports reliable conveyor operation
Standard Primary Belt Cleaner Applications
Standard primary polyurethane belt cleaners are widely used in bulk material conveying systems where controlling carryback and maintaining cleaner conveyor structures are important. Their balanced design makes them suitable for many conveying environments, from general industrial transport lines to continuous bulk handling operations.

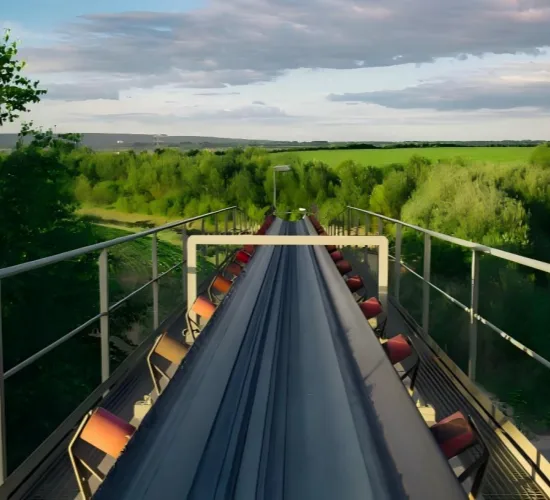

Long Distance Belt Conveyors

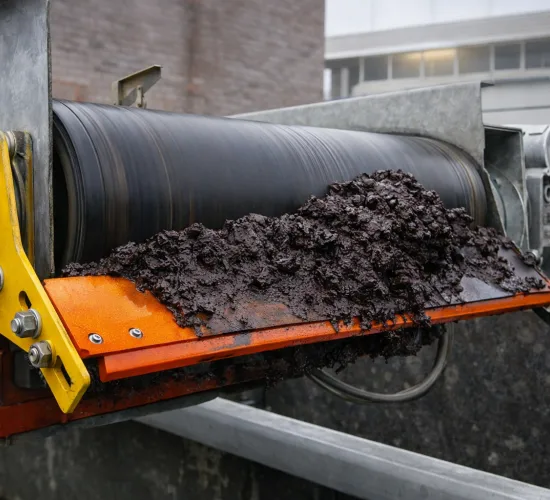

Transfer Point Conveyors
Medium Capacity Material Conveying Lines

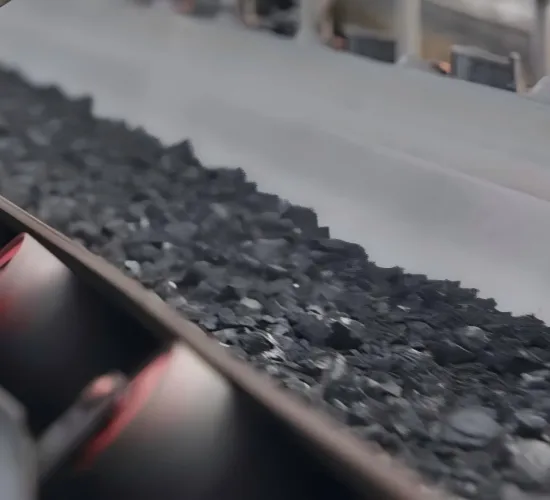

Continuous Bulk Handling Conveyors
Send your belt width, head pulley area photos, and material type. We’ll recommend the right primary belt cleaner configuration and provide a quote.
Standard Primary Belt Cleaner Installation Position
The standard primary belt cleaner is installed at the head pulley of a conveyor system where material discharge occurs. This location allows the polyurethane blade to remove residual material from the belt surface before it travels along the return side of the conveyor.
- Installed directly after the material discharge point
- Positioned on the belt surface at the head pulley
- Allows the blade to remove carryback at the earliest stage
- Helps prevent material from travelling along the return belt
Standard Primary Belt Cleaner Selection Guide
Selecting the appropriate belt cleaner depends on conveyor capacity, material characteristics, and operating conditions. Standard primary polyurethane cleaners are designed for general conveying systems where effective carryback control is required without the complexity of heavy-duty cleaning structures.
Selection Reference
| Conveyor Condition | Suggested Solution |
|---|---|
| General bulk material conveying | Standard Primary Belt Cleaner |
| Medium capacity conveyor systems | Standard Primary Belt Cleaner |
| Normal abrasive material handling | Standard Primary Belt Cleaner |
| Extremely high tonnage conveyors | Heavy-duty primary cleaner recommended |
| Severe material adhesion or wet sticky materials | Secondary cleaning system may be required |
Frequently Asked Questions
-- Standard Primary Polyurethane Belt Cleaners
If residual material remains on the belt after discharge and begins to accumulate along the return side, a primary cleaner is usually required. Installing a cleaner at the head pulley helps remove this material before it travels back along the conveyor.
Polyurethane blades are commonly used for bulk materials such as coal, aggregates, ores, sand, and many industrial raw materials. They provide good wear resistance while maintaining flexible contact with the belt surface.
Blade wear depends on factors such as belt speed, material abrasiveness, and operating hours. In most general conveying systems, the blade gradually wears and can be replaced once the cleaning performance decreases.
Yes. Most standard primary cleaners are designed to be mounted on existing conveyor structures near the head pulley. Installation usually requires only basic mounting brackets and alignment adjustment.
In conveyors handling sticky materials or requiring higher cleaning efficiency, a secondary cleaner may be installed after the primary cleaner to further remove fine residual material.
